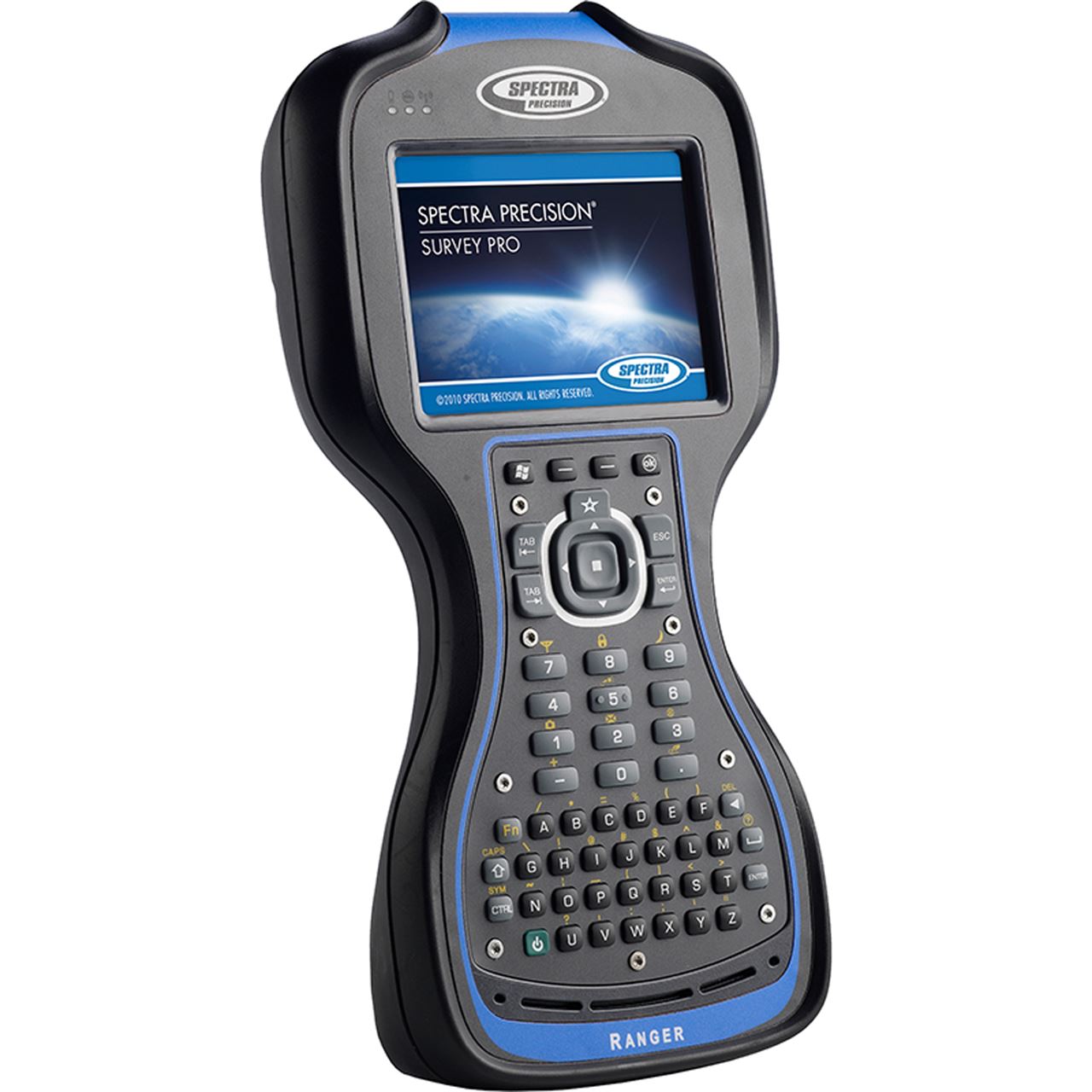

Spectra Precision Ranger 3 Data Collector

Manufacturers: Spectra Precision , TDS
Call for pricing

The third generation Spectra Precision® Ranger™ Data Collector offers a large bright touch-screen, full alpha-numeric, easy to operate, keypad, and is packed with the features surveyors depend on. Built rugged, it meets rigorous MIL-STD-810G military standard for drops, vibration, humidity and extreme temperatures, and with an IP67 rating, it's designed to keep your investment and your data safe. The Ranger features Survey Pro and Windows Mobile 6 5, with the capability to run the mobile version of all your favorite programs, including Excel and Outlook. Integrated Bluetooth capabilities let you connect to field equipment without cables. The Ranger 3 comes standard with 8 GB of onboard memory for storing data. Move your data fast and easily using a SDHC card, Bluetooth, USB cable, USB memory stick, WiFi, or GSM WWAN. Choose from four different models of the Ranger with the features that best suits your needs and your budget. They're all power-packed, so there's no wrong choice.

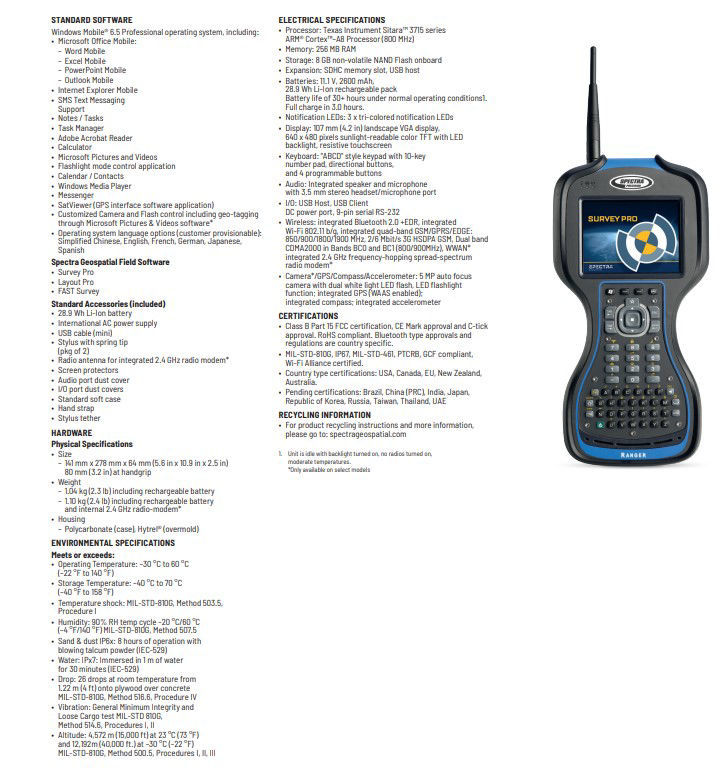

SPECIFICATIONS

Standard Software:

Windows Mobile 6.5 Professional Operating System, including:

  • Microsoft Office Mobile:
    • Word Mobile
    • Excel Mobile
    • PowerPoint Mobile
    • Outlook Mobile
  • Internet Explorer Mobile
  • SMS Text Messaging Support
  • Notes/ Tasks
  • Task Manager
  • Adobe Acrobat Reader
  • Calculator
  • Microsoft Pictures and Videos
  • Flashlight mode control application
  • Calendar / Contacts
  • Windows Media Player
  • Messenger
  • SatViewer (GPS interface software application)
  • Customized Camera and Flash control including geo-tagging through Microsoft Pictures and Videos software (select models)
  • Operating system language options:
    • Simplified Chinese
    • English
    • French
    • German
    • Japanese
    • Spanish

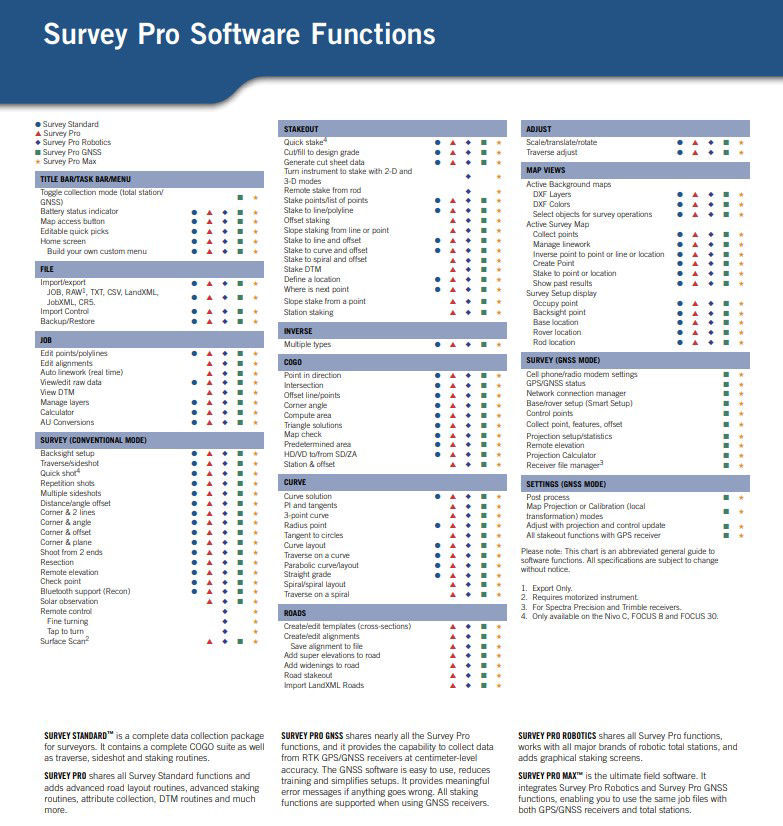

  • The Spectra Precision Ranger data collector runs Spectra Precision Survey Pro field software.



Included Accessories:

  • 28.9 Wh Li-Ion battery
  • International AC power supply
  • USB cable (mini)
  • 2x Stylus with spring tip
  • Radio antenna for integrated 2.4 GHz modem (select models)
  • Screen protectors
  • Audio port dust cover
  • I/O port dust covers
  • Standard soft case
  • Hand strap
  • Stylus tether



Size





Weight





Housing

141mm x 278mm x 64mm

(5.6" x 10.9" x 2.5")

80mm (3.2") at handgrip

1.04kg (2.3lb) including rechargable battery

1.10kg (2.4lb) including rechargable battery

and internal 2.4GHz radio-modem (optional)

Polycarbonate (case), Hytrel (overmold)



Envoronmental Specifications:



Operating Temperature



Storage Temperature



Temperature Shock



Humidity





Sand & Dust



Water



Drop





Vibration





Altitude





-30°C to 60°C

(-22°F to 140°F)

-40°C to 70°C

(-40°F to 158°F)

MIL-STD-810G, Method 503.5

Procedure I

90% RH temp cycle -20°C/60°C

(-4°F/140°F)

MIL-STD-810G, Method 507.5

IP6x: 8 hours of operation with

blowing talcum powder (IEC-529)

IPx7: Immersed in 1m waterfor

30 minutes (IEC-529)

26 drops at room temperature from 1.22m (4')

onto plywood over concrete

MIL-STD-810G, Method 516.6, Procedure IV

General Minimum Integrity and

Loose Cargo test

MIL-STD 810G, Method 514.6, Procedures I, II

4,572m (15,000') at 23°C (73°F)

and 12,192m (40,000') at -30°C (-22°F)

MIL-STD-810G, Method 500.5, Procedures I, II, III

Electrical Specifications:



Processor



Memory

Storage

Expansion

Batteries









Notification LEDs

Display







Keyboard





Audio





I/O



Wireless













Camera (Optional)





GPS

Compass

Accelerometer

Texas Instruments Sitara 3715 series

ARM Cortex A8 Processor (800MHz)

256MB RAM

8GB non-volatile NAND Flash onboard

SDHC memory slot, USB host

11.1V, 2600 mAh

28.9 Wh Li-Ion rechargable pack

Battery life of 30+ hours under

normal operating conditions

Full charge in 3 hours

3x tri-colored notification LEDs

107mm (4.2") landscape VGA display

640 x 480 pixels

sunlight-readable color TFT with

LED backlight, resistive touchscreen

"ABCD" style keypad with 10-key

number pad, directional buttons,

and 4 programmable buttons

Integrated speaker and microphone

with 3.5mm stereo

headset/microphone port

USB Host, USB Client

DC power port, 9-pin serial RS-232

integrated Bluetooth 2.0 +EDR

integrated Wi-Fi 802.11 b/g

integrated quad-band GSM/GPRS/EDGE:

850/900/1800/1900 MHz

2/6 Mbit/s 3G HSDPA GSM WWAN (Optional)

integrated 2.4 GHz frequency-hopping

spread-spectrum radio modem (optional)

5MP auto focus camera

with dual white LED flash,

LED flashlight function

integrated GPS (WAAS enabled)

integrated compass

integrated accelerometer

Certifications

Class B Part 15 FCC certification, CE Mark approval and C-tick approval, RoHS compliant, Bluetooth type approvals and regulations are country specific. MIL-STD-810G, IP67, MIL-STD-461, PTCRB, GCF compliant, Wi-Fi Alliance certified.
