Sorry - this product is no longer available

eFix R1 Rover Kit

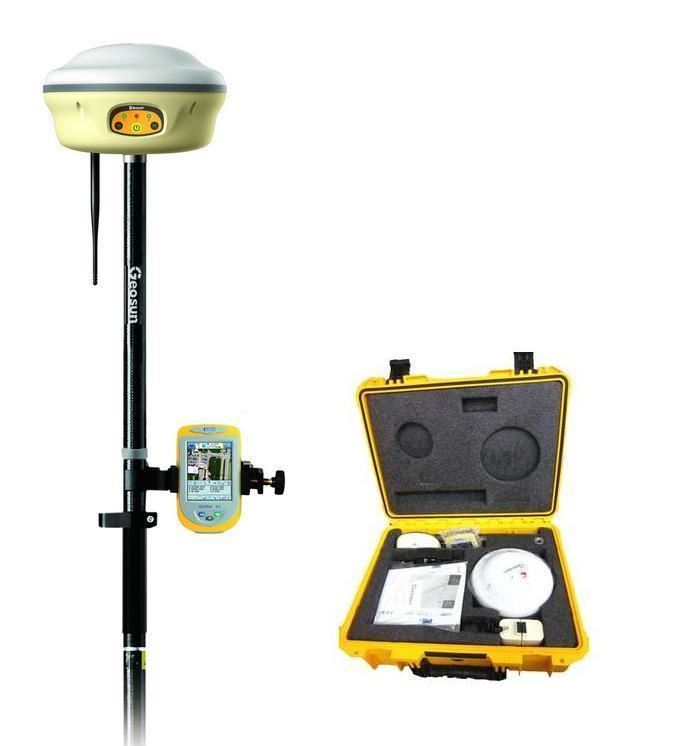

Geosun eFix R1 High-performance GNSS RTK Rover Kit complete with K2 Controller and GeoPac Field Survey Application, Pole & bracket
Free shipping
Delivery date: 1-2 days
Old price: $9,495.00
$7,495.00

eFix R1 Series Product Brochure

Product Description

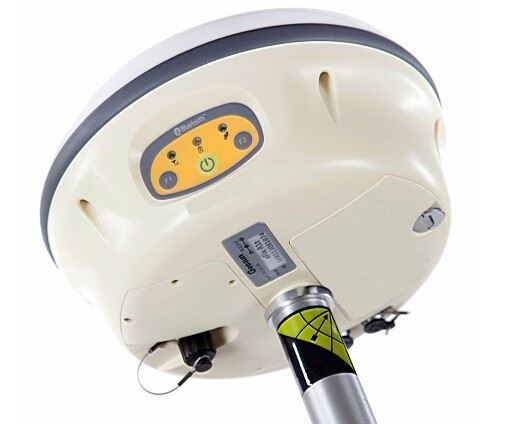

eFix R1 series is a high-accuracy multi-frequency multi-satellite RTK field mapping system elaborately designed for RTK/GIS fieldwork by Geosun. eFix R1 series applies comprehensively various kinds of high precision real-time dynamic positioning technologies, which enables eFix R1 series to track and observe all visible GNSS satellite signals easilyso as to offer precise, efficient and reliable RTK measurementand provide strong and flexible solution.



  •  Dual power supply design, industry’s highest large capacity Li-ion battery, supports hot plug power battery replacement
  •  Configured with software supporting GPS, GLONASS, and Compass carrier phase
  •  Seamless compatible with various CORS systems
  •  Linux intelligent system
  •  Support GPS, GLONASS, Compass, Galileo
  •  Support WASS,EGNOS,MSAS,GAGAN
  •  Fast initialization and satellite tracking technology
  •  Intelligent fault diagnosis and audio reminder function
  •  Built-in high-performance processor can process 20Hz data
  •  Built-in 2 watts narrow band transmitting-receiving UHF radio
  • 3G/GPRS modem / cell
  •  Bluetooth
  •  Support one-key setup for base
  •  Standardized design, exchangeable base and rover

GeoRef K2E
R1 controller, also working as a high sensitive industry-level handheld receiver
GeoRef K2E is with Windows CE 6.0/Windows Mobile 6.5 operation system and built-in 1GHz industry-level processor, while supporting 10GB or even larger raster image loading and 100 MB level vector data loadingproviding comprehensive GPS/GIS software application solutions.

GeoPac - Professional Collecting Software
GeoPac is the latest multifunctional GNSS data collectionprocessing and management softwarecontaining data collectionedition, detectionanalysis and storagewhich is widely applied in different fields such as engineering surveyroad engineeringwater conservancy, forestry and etc.

  • Comprehensive functionalitiesmeeting both requirements of high-accuracy engineering survey and field data collection.
  • High-accuracy rapid positioning can meet different accuracy requirements.
  • User-friendly interface makes heavy-duty fieldwork easy and convenient.
  • Universal coordinate systems with the popular Gauss, UTM, Mercator projection, etc.
  • Various convenient coordinate transformation toolsmaking plane 4-parameter,spatial 7-parameter and 3-parameter transformation easier.
  • Powerful process and performance as well as very fast and smooth operations based on advanced calculation technologyeven with over 3000 points collected.
  • Multiple professional data collection methods.
  • Complete attributes library and easy setup make data collection and management super-easy, greatly increasing fieldwork efficiency.


Engineering Survey
The built-in extension module specially designed for engineering survey:

  • Provide professional high-accuracy solution for RTK survey with self-built base or the one based on CORS.
  • Convenient management for stakeout point librarycontrol point library and detail point library.
  • Avoid the conventional defect of error accumulation in handset built-in softwaresignificantly improve the survey accuracy.
  • Powerful post-processing software enables survey more flexible with more accurate results.


Road Engineering
The built-in extension module specially designed for road survey application:

  • Powerful and practical design features.
  • Flexible stakeout mode with navigation function.
  • Support various stakeout of transition curveseasy and convenient to operate.
  • Support center lineprofile and template edition and stake out for road application.



1 eFix R1 receiver
2 Battery
1 Charger adapter
2 Data cable (power port + USB + D-sub9 female serial port)
1 Battery charger
1 Stud connector
1 controller bracket
1 Radio receiving antenna
1 Centering pole
1 GeoRef K2E handheld GPS controller
2 GeoRef K2E battery
1 GeoRef K2E charger
1 Adapter for GeoRef K2E charger
2 Adapter (British, European, US, three style for option)
1 GeoRef K2E USB data cable
1 Micro SD card (2G)
2 Touch pen
1 Geosun DVD

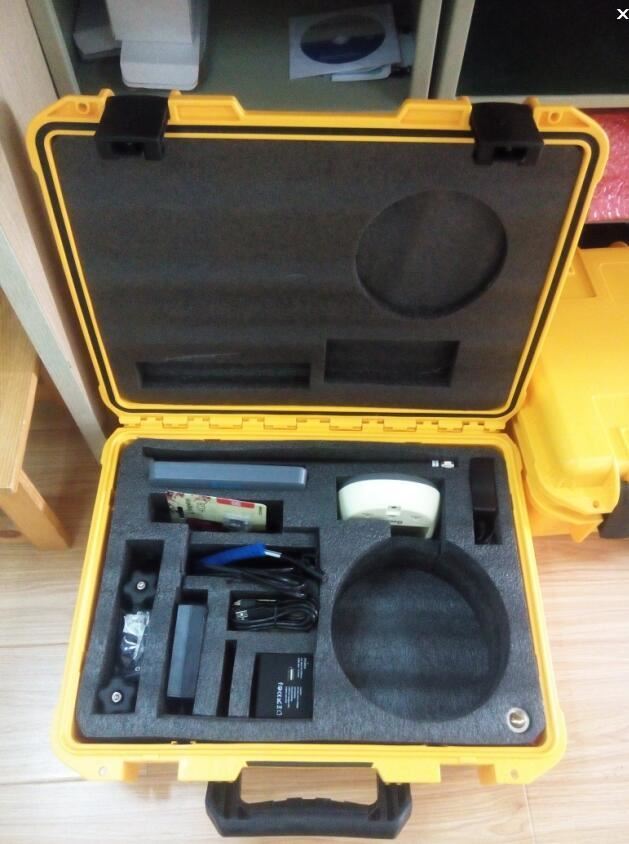

1 Carry case
